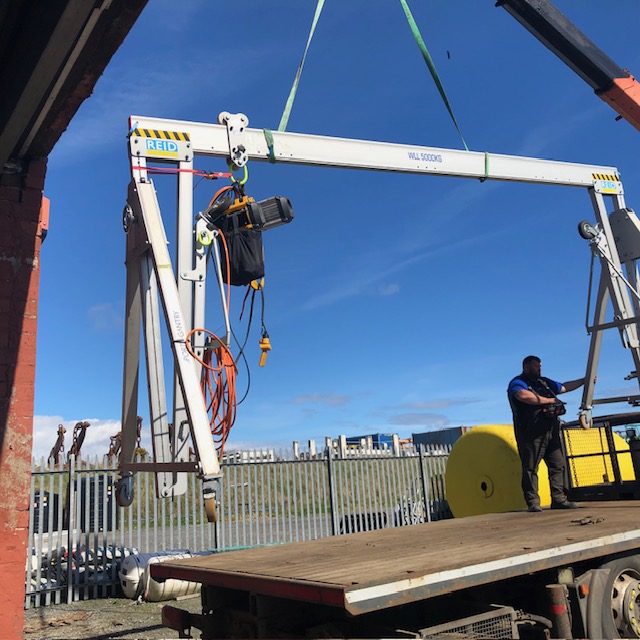

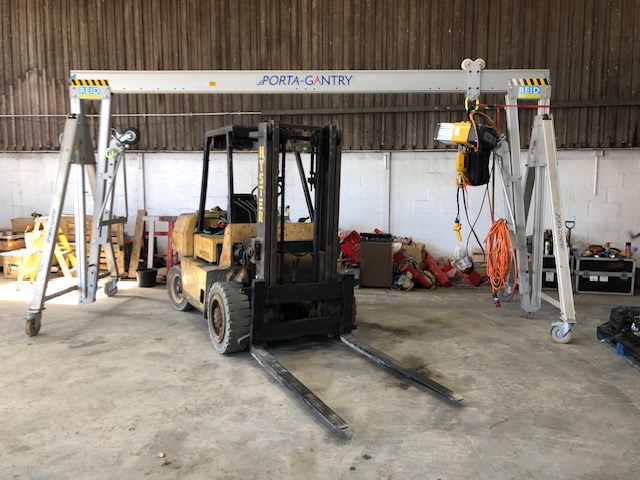

Reid Lifting 5000kg PortaGantry
Our top quality and highly durable PORTAGANTRY is lightweight and extremely strong. This portable lifting system can be manually assembled, using just four bolts and can safely lift to 5000kg, making it ideal for multiple applications KEY FEATURES
Overall Dims 5.6m long x 2.6m w x 2.9m high
This system offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials. Our PORTAGANTRY range is highly customisable to meet your specific needs, with a variety of A-frame height configurations and beam lengths available
Available in 2 frame sizes Intermediate & Tall
Key features:-
• EN795:2012 & ATEX certified
• Can support goods and personnel lifting
• Suitable for up to 5 persons for fall protection applications
• Personnel capacity up to 2500kg
• Goods capacity up to 5000kg
• Beams and A-Frames can be interchanged
• Ergonomic 360° swivel-locking castors as standard
• Ease of assembly including height and span adjustment
• Height adjustment: 200mm increments
• Anodised for increased corrosion resistance
• Available in 2 frame sizes Intermediate & Tall
Height adjustment: 200mm increments
Supplied with Masterlink Trolley
YaleLift 360º Hand Chainblock
A hand Chainblock which opens up new opportunities. The range of applications as well as the operating conditions have been changed by a revolutionary hand chain design
The key to this Innovation is the revolutionary 360º rotating hand chain guide, which allows operation of the hand chain from virtually any position, even in extremely confined areas. The YaleLift 360º can be operated at the side of the load or from any other position including horizontal pulling
5000kg SWL
Lifting Height from 3mtr to 10mtr
Falls of loadchain: 2
Chain diameter: 10x30mm
Closed height: 654mm

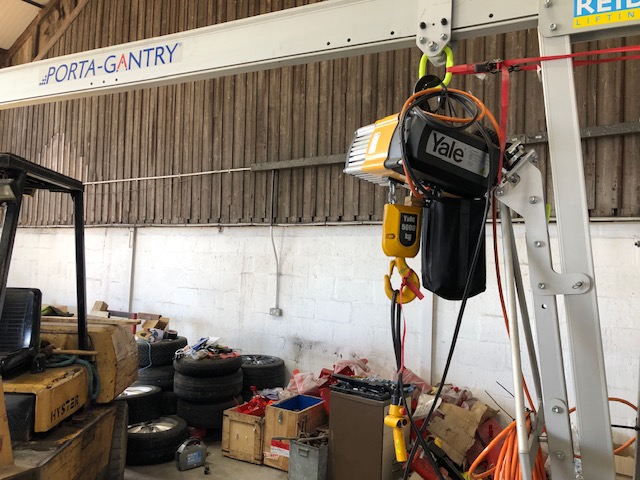

Electric chain hoist , Tough lightweight aluminium alloy covers totally enclose the mechcanical and electrical components providing protection and efficient heat dissipation. The design enables easy access for installation and service
• Adjustable upper and lower limit switches
• 48V control, IP65 pendant as standard
• Thermal overload protection as standard
• FEM classification 2m (40% duty – 24mins continous use per hour)
• Motor classification H4
• Excellent closed height dimensions
• A lifetime lubricated gearbox contributes to exceptional service and maintenance characteristics
• CAPACITY: 3000kg
• LIFTING SPEED: 1.33mtrs/min
• Power supply: 110volt
